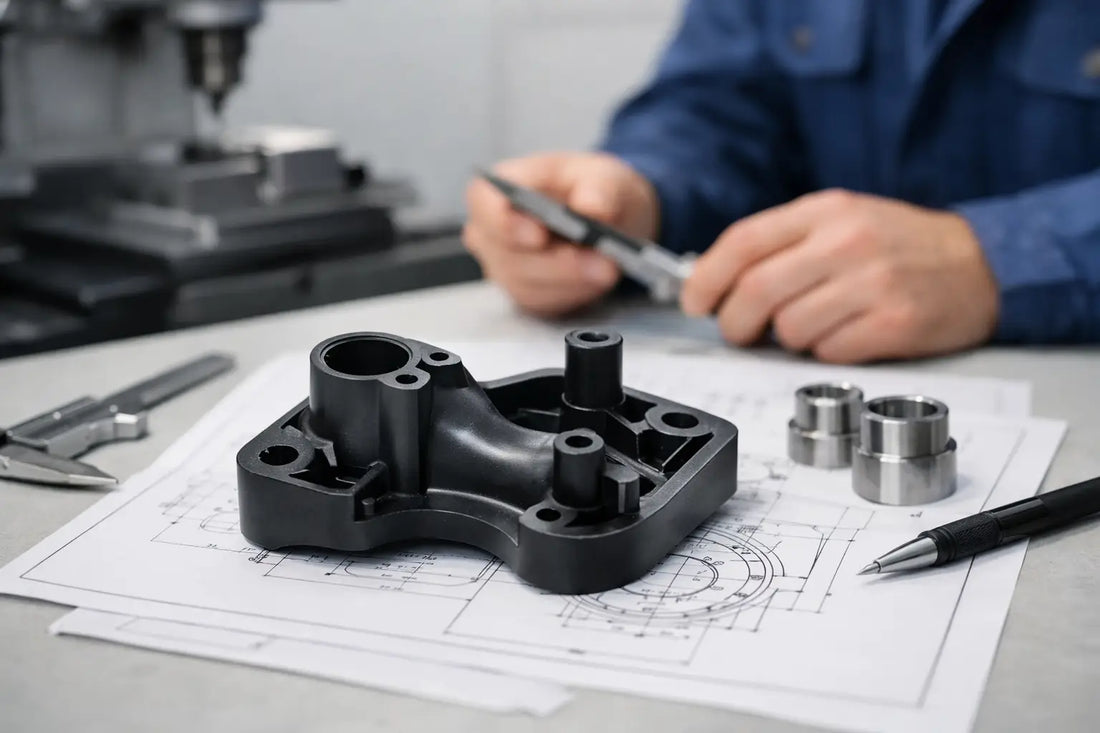

Have plastic part manufactured according to drawing

A missing holder, an ill-fitting cover, or an insert that constantly slips out of place in daily use: often it's not a large component that's needed, but one that finally fits perfectly. A plastic part made to drawing can close this gap. Instead of settling for a compromise, a functional part is created for the existing workplace, device, or organization system.

Especially for individual parts and small quantities, 3D printing is a practical option. The form can be precisely matched to the actual use, changes remain feasible, and production doesn't have to be prepared with expensive tools. However, the drawing alone isn't the only crucial factor. For the part to fulfill its purpose later, its function, load, and installation situation must be considered from the outset.

When a Plastic Part Made to Drawing is Worthwhile

An individually manufactured plastic part is useful when standard products don't meet a specific requirement. This could be a cable holder for a particular table, a labeling solution for storage boxes, an adapter between two components, or a precisely fitting tool insert for tools and materials. Older devices, custom sizes, and small workspaces often present situations for which there simply isn't a ready-made product.

For companies, such parts are particularly interesting when they simplify processes. A well-placed scanner holder saves hand movements. An insert compartment prevents small parts from getting mixed up. A jig supports recurring work steps. The individual benefit seems small but quickly adds up in daily work.

The same applies to private applications: A part doesn't have to be elaborate to be helpful. If it makes better use of storage space, tidies a desk, or neatly holds a personal item, it fulfills its purpose. The best solution is usually the one you don't want to do without after a few days.

From Drawing to the Right Component

A technical drawing is a very good basis, but it doesn't answer every practical question. It shows dimensions, views, and often tolerances. What it sometimes doesn't show: How is the part assembled? What forces act on it? Does it need to be removed regularly? Does it come into contact with heat, moisture, or cleaning agents?

Therefore, good implementation begins with a brief look at the application. A hook for headphones requires different wall thicknesses than a cover. A clip must be able to bend in a controlled manner. A holder for a device must not only meet the outer dimensions but also consider access points, buttons, cables, and safe removal.

In addition to the drawing, a photo of the installation location and the most important mating parts that the part needs to fit are helpful. For a bore, for example, not only its diameter counts. The screw head, washer, fastening direction, and available space also determine whether the construction will function cleanly later.

Correctly Specifying Dimensions

For precisely fitting parts, critical dimensions are more important than as many specifications as possible. These include receptacles, plug connections, bores, grooves, stops, and surfaces against which the part rests. A caliper measurement is sufficient for many projects. For more complex counter-forms or very tight fits, a test part can be useful.

The direction of the tolerance is also important. Should an insert slide in easily, snap in firmly, or deliberately have play? Plastic behaves differently than metal. In addition, there are the peculiarities of 3D printing: depending on geometry, print orientation, and material, slight deviations can occur. A design that plans for small reserves is often more reliable in daily use than a drawing with theoretically zero play.

Not Every Edge Needs to Be Exact

Some dimensions are functionally critical, others can be more generous. The outer shape of a small organization compartment can usually vary somewhat. The position of a clip or the width of a guide, however, cannot. Naming these differences early saves queries and prevents time from being spent on unimportant details.

The appearance is also part of the planning. Visible surfaces, rounded edges, labels, or a desired color can improve usability. Especially for parts that are openly placed on a table, on a shelf, or in a reception area, function should not look like a temporary solution.

Material and Design Must Match the Task

3D-printed plastic parts are versatile but not a substitute for every industrially manufactured component. A light cable clip, a sorting aid, or a device holder can be implemented very well. For high continuous load, strong heat, direct sunlight, aggressive chemicals, or safety-critical applications, the material must be chosen particularly carefully. Sometimes another manufacturing process is the better decision.

For many applications in the office, household, warehouse, or workshop, common plastics are very well suited. They are dimensionally stable, lightweight, and available in different colors. If a part is subjected to stress, sufficiently strong walls, clean radii instead of sharp inner corners, and a print orientation that matches the direction of stress help.

An example: A wall bracket that is pulled forward does not only need its strength on the visible front. The connection to the wall and the transitions between the base and the side wall are crucial. If the material and geometry are planned correctly there, a part is created that feels secure in use without becoming unnecessarily massive.

Drawing File, Sketch, or Sample?

The fastest way to work is with an existing CAD file, for example as a STEP file. It contains the geometry as an editable model and is ideal if details still need to be adjusted. An STL file can also be a basis, provided the model is already correct and no extensive changes are necessary.

A dimensioned PDF drawing is also sufficient for many simple components. It should contain clear views and make it clear which dimensions are binding. For a simple spacer, a plate with holes, or an open compartment, a finished geometry can be easily developed from it.

If no drawing is available, the project does not have to end. A hand sketch with dimensions, photos, and a description of the function are often a usable start. An existing sample can also help. Crucial is open feedback on where dimensions are estimated and what absolutely must fit. This allows a joint assessment of whether an initial sample part is useful.

First Test, Then Plan Small Series

For a single part, direct manufacturing is often the appropriate path. For several identical parts, however, a test print is worthwhile. It shows whether the fit is correct, whether the operation is comfortable, and whether small changes are still needed. Especially for clips, plug connections, or parts with several mating pieces, this step is useful.

A small series should only start when the form and application have been checked. Then, color, quantity, and possible variants need to be clarified. For example, different labels, different sizes, or an adaptation to several workplaces are possible. This way, the solution remains uniform without forcing every special case into a rigid standard form.

At FyDa Printwerk, Fynn and Daniel personally accompany such projects with an eye on the actual benefit. Not every idea immediately needs a complicated construction. Often, the better solution arises when it is understandable, stable, and quick to use in everyday life.

Typical Mistakes That Are Easy to Avoid

The most common mistake is to only look at the form. A part can look right on screen and still be impractical because a cable has no space or a hand cannot easily reach the handle. Therefore, the use should be fully simulated mentally: attach, load, operate, clean, and remove if necessary.

Equally problematic are overly tight fits without testing. A component that theoretically fits exactly can jam due to minimal manufacturing deviations. It is better to describe the desired function: easily pluggable, snug fit without play, firmly latched, or permanently screwed. From this, the appropriate design can be derived.

An unclear quantity also leads to unnecessary loops. Different priorities apply to a single spare part than to 30 identical workplace aids. For small series, repeatability, labeling, and a sensible arrangement on the print bed play a greater role.

Faster to a Solution with a Clear Inquiry

A good inquiry does not have to be formulated technically. It should explain what problem the part solves, where it will be used, and which dimensions are mandatory. A drawing or sketch, photos of the environment, desired quantity, and a hint regarding color or surface provide a solid basis.

If there is uncertainty, that is not an obstacle. Especially with individual parts, discussions reveal what information is truly needed and where a simple adjustment brings more than a complicated solution. A plastic part made to drawing is then not only manufactured but also planned in such a way that it creates order, shortens routes, or finally makes a previously impractical place useable.

In the end, it's not how technical the drawing looks that matters. What matters is that the part works in its place and makes everyday life a little easier.
